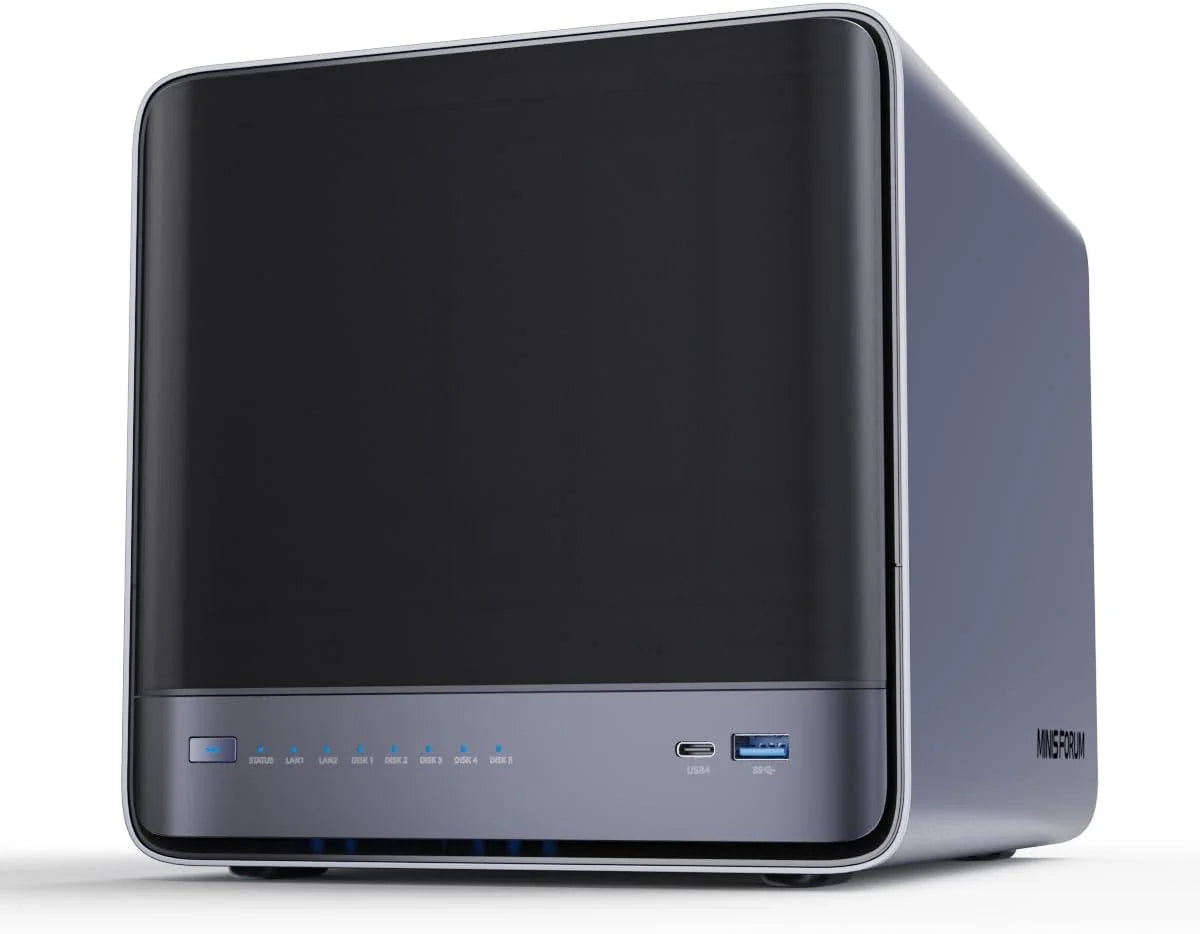

MINISFORUM N5 Air 5-Bay Desktop NAS Barebone with up to 174 GB storage, AMD Ryzen 7 255 (8C/16T) CPU, Dual DDR5 RAM (up to 96 GB), 1x 10GbE, 1x 5GbE, 2x USB4 (8K), HDMI 8K, OCuLink, 3x M.2 slots(N5A-H255(16+0+64))

CPU: AMD Ryzen 7 255 processor.
Core: 8
Draad: 16
Frequentie: 3,8 GHz.
Max. turbo-frequentie: 4,9 GHz.
Grafische kaarten: AMD Radeon 780M
Geheugentype: DDR5 SO-DIMM x 2
Max Speed Support: 5600MT/S
Opslagtype: 5 x 3,5/2,5 inch HDD (tot 30 TB/disk) (SATA 3.0).
Opslagtype: 3 x M.2 2230/2280/22110 NVME SSD (tot 8TB, PCIE4.0 x1).
CPU-fan: 7515 mm turboventilator
MAX Speed (CPU-ventilator): 2700 tpm.
HDD Fan Type: 2 x 9025mm ventilator
MAX Speed (HDD fan): 3450 tpm.
M.2 2230 E-Koy WiFi/BT Combo Modulo (alleen PCIe)
10 GbE LAN (RJ45. modules AQC113).
5 GbE LAN (RJ45, module: RTL8126).
HDMI XL (tot 8K @60Hz/4K @144Hz)
USB4 x 2 (tot 8K @60Hz/4K @144Hz)
USB4 (oud DP 2.0) x 1
USB 3.2 Gen2 x 1
USB4 (oud DP 2.0) x 1
1 x HDMI 2.1 FRL.
LOGbE LAN-poort (LAN2.RJ45.AQC113) x 1
5 GbE LAN-poort (LAN1.RM5.RTL8126) x 1.
USB 3.2 Gn2 x 1
USB 2.0 x 1

【Unmatched Processing Power】The MINISFORUM N5 Air Desktop NAS features AMD Ryzen 7 255 (8C/16T, up to 4.9 GHz). It also comes with an AMD Radeon 780M graphics card. Supports multi-user access, simultaneous retrieval of multiple files, and ultra-high-speed decoding of audio and video playback. Say goodbye to the cumbersome operations of traditional hard drives and build your data management center that offers centralized storage, automatic backup, remote access, and extensive RAID options.
【5-Bay, 174TB Massive Data Storage】The N5 Air is equipped with five SATA HDD bays: supporting 30TB x 5 and 3 x M.2 NVMe SSD bays, supporting 8TB x 3. The N5A NAS has a maximum storage capacity of up to 144TB. Multiple RAID modes ensure data security, supporting RAID 0, RAID 1, RAID 5/RAIDZ1, RAID 6/RAIDZ2, and mixed drive strategies for hot data and cold backup, accelerating read speeds and reducing storage costs.
【10GbE + 5GbE Network Ports】This NAS is equipped with one 10GbE high-speed network port and one 5GbE network port. The 10G + 5G dual LAN ports support link aggregation and deliver speeds of up to 15 Gbps. 10GbE network technology enables high-speed data transfers for cross-team collaboration, large file processing, and parallel multitasking.
【Expandable Memory】The MINISFORUM N5 Air NAS features two DDR5 SO-DIMM slots, each expandable to 48GB, for a total of 96GB. DDR5 5600MT/s offers 75% more bandwidth than DDR4, ideal for high concurrency and large file processing, supporting more VMs and providing smoother data transfer. Note: This model does not include RAM or SSD storage; it is configured with 64GB eMMC as the Miniscloud system drive.
【Extensive Connectivity, Total Flexibility】The N5 Air NAS supports dual USB4 ports, each supporting up to 20Gbps Thunderbolt Ethernet. The PCIe x16 slot supports 10GbE NICs, GPU expansion, and SSD cache arrays for ultra-low latency storage. Boost read/write speeds without upgrading your system – plug and play.


› Meer productgegevens bekijken

Merk
MINIS FORUM


Kleur
zwart.


Grootte
N5A-H255(0+0+64)


Materiaal
Kunststof


Compatibele apparaten
desktop, server, CPU, laptop


Soort montage
Vloermontage


Montage vereist
Ja


Opslagvolume
174 TB


Aantal items
1


Fabrikant
Micro Computer (HK) Tech Limited
